It adopts a tunneltype continuous conveying design. Compared with batch ovens, it offers significantly improved efficiency and meets the needs of high-volume production.

采用高效远红外材料填充并板，并搭载隧道远红外灯管，具有升温迅速、热滞后小、发热均匀、热辐射传递距离远、热交换速度快等特点。

The cabinet is filled with high-efficiency far-infrared materials and equipped with far-infrared lamp tubes, featuring rapid temperature rise, minimal thermal lag, uniform heat generation, long heat radiation transmission distance, and fast heat exchange speed.

智能化操作与控制

Intelligent Operation and Control

搭配昆仑通态触摸屏，操作界面简洁（含操作页面、参数设置、手动操作、状态监控等模块），支持参数保存 / 调用。

It is equipped with a KunLun TongTai touchscreen, featuring a concise UI (including modules for operation, parameter setting, manual operation, status monitoring, etc.) and supporting parameter saving/retrieval.

全过程数字化显示和记录干过程中的温度、速度等关键数据，具备故障自动诊断和警报功能，确保生产安全稳定。

Key data such as temperature and speed throughout the drying process are digitally displayed and recorded throughout the process. It is equipped with automatic fault diagnosis and alarm functions to ensure safe and stable production.

均匀控温，干燥质量稳定

Uniform Temperature Control for Stable Drying Quality

配备多组独立控温系统（根据烘箱长度定），控温精度 ±3℃，配合热风循环风道，确保隧道内各区温度均匀，避免物料局部过干或未干，保障干燥后物料品质一致。

Equipped with multiple independent temperature control systems (based on the oven length), it features a temperature control accuracy of ±3℃. Combined with a hot air circulation duct, this system ensures uniform temperature distribution across all areas inside the tunnel, preventing materials from being partially over-dried or insufficiently dried, and thus guaranteeing consistent quality of the dried materials.

可根据物料特性，精准设定传送带速度、各温区温度等参数，匹配较佳干燥速率。

Parameters such as conveyor speed and the temperature in each zone can be precisely set according to the characteristics of the materials, matching the optimal drying rate.

结构稳定与安全保障

Stable Structure and Safety Assurance

机身采用高强度钢材焊接，并经喷砂、高温喷塑处理，耐高温、耐腐蚀，使用寿命长。

The machine body is welded with highstrength steel and treated with plastic spraying, featuring high temperature resistance, corrosion resistance, and a long service life.

设有急停按钮、电机过载保护、温度报警等安全功能，操作区域标注安全警示，符合工业设备安全标准。

It is equipped with safety functions such as an emergency stop button, motor overload protection, and temperature alarm. Safety warnings are marked in the operation area, complying with industrial equipment safety standards.

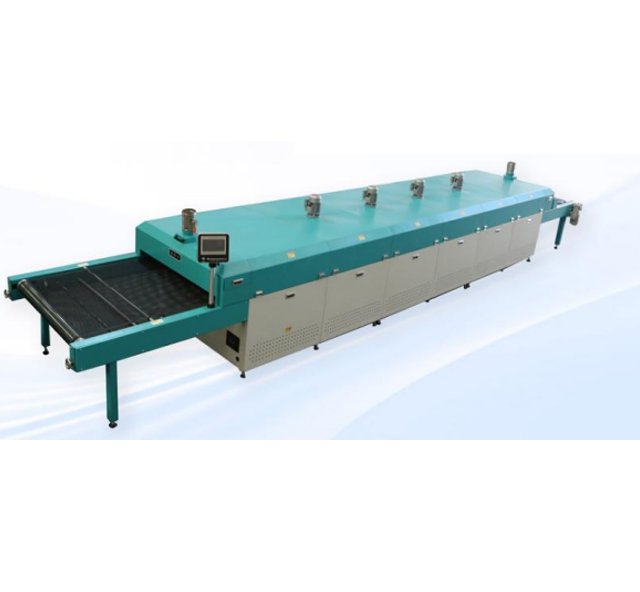

隧道式烘干机主要是针对纺织面料特性研发的连续式自动化干燥设备，通过碳纤维红外灯管加热与隧道式输送结合，实现服装印花固色、洗涤后烘干等核心功能。设备适配常规的棉、麻、化纤等全品类服装面料，广泛应用于服装印花厂、数码印花车间、水洗厂等生产企业，可解决传统烘干效率低、面料损伤等痛点，从而提高生产效率和品质。

The tunnel dryer is a continuous, automated drying equipment developed specifically for the characteristics of textile fabric, by combining heating via carbon fiber infrared lamp tubes with tunnel-type conveying. It realizes core functions such as color fixation for garment printing and drying of textiles after washing. This equipment is compatible with all types of conventional garment fabrics including cotton, linen, and chemical fibers, and is widely used in production enterprises such as garment printing factories, digital printing workshops, and laundry factories. It addresses pain-points of traditional drying methods such as low efficiency and fabric damage, thereby improving production efficiency and quality.

适用场景

Applicable Scenarios

适用于服装印花厂、数码印花车间、水洗厂等生产企业。

Production enterprises such as garment printing factories, digital printing workshops, and laundry factories.

产品价值

Product Characteristics

无锡晟旭隧道式烘干机并不仅仅是一台干燥设备，更是一套提升产品价值、降低综合成本、实现智能化生产的完整解决方案。我们致力于为客户提供从工艺咨询、方案设计、设备定制到安装调试的全方位服务。

The Wuxi Shengyan Tunnel Dryer is more than just a drying equipment. It is a comprehensive solution that enhances your product value, reduces overall costs, and enables intelligent production. We are committed to providing customers with full-range services, from process consultation, solution design, equipment customization to installation and commissioning.
